PLACA BASE MSI H510M PRO-E,INTEL,1200,H510,2DDR4,64GB,VGA+HDMI,GBLAN,4SATA3,4USB3.2,MATX
PLACA BASE MSI H510M PRO-E,INTEL,1200,H510,2DDR4,64GB,VGA+HDMI,GBLAN,4SATA3,4USB3.2,MATX
PLACA BASE MSI H510M PRO-E,INTEL,1200,H510,2DDR4,64GB,VGA+HDMI,GBLAN,4SATA3,4USB3.2,MATX
PLACA BASE MSI H510M PRO-E,INTEL,1200,H510,2DDR4,64GB,VGA+HDMI,GBLAN,4SATA3,4USB3.2,MATX

911-7D23-002

PLACA BASE MSI H510M PRO-E, INTEL, 1200, H510, 2DDR4, VGA+HDMI, GBLAN, 4SATA3, 4USB3.2, MATX

La serie PRO ayuda a los usuarios a trabajar de manera más inteligente ofreciendo una experiencia eficiente y productiva. Con una funcionalidad estable y un montaje de alta calidad, las placas base de la serie PRO no sólo proporcionan flujos de trabajo profesionales optimizados, sino también un número menor de errores y una mayor longevidad.

Estado: NUEVO [ Almacén Externo ] - entrega en 48 Horas

Processor

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1

  1. Please go to www.intel.com for more compatibility information.

See supported processors

Chipset

Intel® H510 Chipset

Memory

  • 2x DDR4 memory slots, support up to 64GB1
  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory.

See supported memory

Expansion Slot

  • 1x PCIe x16 slot (From CPU)
    • Support up to PCIe 4.0 for 11th Gen Intel® CPU
    • Support up to PCIe 3.0 for 10th Gen Intel® CPU
  • 1x PCIe 3.0 x1 slot (From PCH)
  • 1x M.2 slot with E key for WiFi module only(M2_2)

Onboard Graphics

  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 2
  • 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz1
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.

Storage

  • 4x SATA 6Gb/s ports (From H510 Chipset)
  • 1x M.2 slot (Key M)
    • M2_1 slot (From H510 Chipset) 1
      • Supports up to PCIe 3.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB

Intel® H510 Chipset

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
  • 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Audio

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1x Intel® I219V 1Gbps LAN controller

Internal connectors

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector

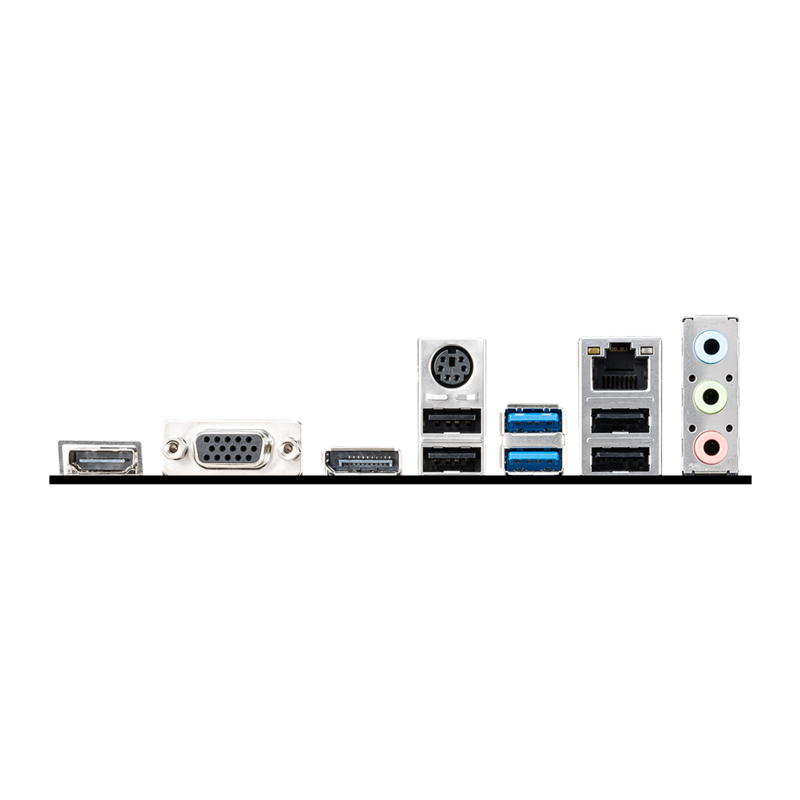

Back panel ports

  1. HDMI
  2. VGA
  3. DisplayPort
  4. Mouse / Keyboard
  5. LAN port
  6. Audio connector
  7. USB 2.0
  8. USB 3.2 Gen 1 5Gbps Type-A
  9. USB 2.0
MSI H510M-A PRO back panel ports

Dimensions

  • mATX Form Factor
  • 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

Mounting

6 mounting holes

Operating System

Support for Windows® 10 64-bit
