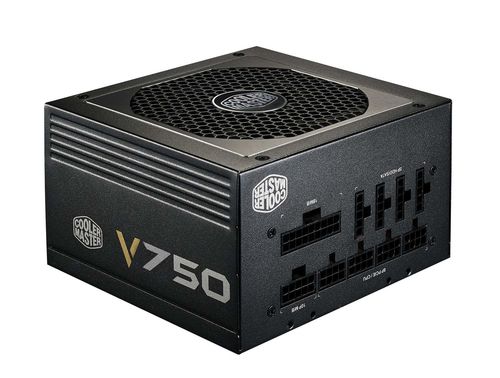

V750
| Model number | RS750-AFBAG1-XX |
| Type | Intel Form Factor ATX 12V V2.31 |
| Dimensions (LxWxH) | 150(L) x 140(W) x 86(H) mm |
| Modularity | Full Modular |
| Input Voltage | 100-240Vac |
| Input Range | Full range |
| Input Current | 10 - 5A |
| Input Frequency Range | 47 - 63Hz |
| PFC | Active PFC (>0.9 typical) |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms |
| Efficiency | 90% Typically |
| MTBF | >100,000 Hours |
| Protection | OVP/UVP/OPP/OTP/OCP/SCP |
| Output Capacity | 750W |
| Operation Temperature | 0~40°C |
| Regulatory | CE/FCC/UL/TUV/RCM/BSMI/CCC/EAC |
| Fan | 120mm Silencio FP |
| 80 Plus Certification | 80 Plus Gold |
| Connectors | 1x MB 24 Pin 2x CPU12V 4+4 Pin 4x PCI-e 6+2 Pin 8x SATA 6x 4Pin Peripheral 1x 4Pin Floppy |
| Warranty | 5 years |
| ErP 2013 Complaint | Yes |
| EAN Code | 4719512048276 |
| UPC Code | 884102027239 |
