CARACTERISTICAS GENERALES
• Pantalla Táctil 12.1" TRUE-FLAT Plana Resistiva
• Intel® Cedarview D2550 1.86Ghz Dual Core
• Disco Sólido 32GB SATA SSD 2.5"
• Memoria RAM 2GB DDR3 ampliable 4GB
• Puertos USB x6 (2 Frontales + 4 Posteriores) / Serie x4 / VGA x1 / GigaLAN x1
• Impresora térmica Seiko 80mm (auto-cutter)
• Carcasa de Aluminio
• Fanless
• Placa Industrial
• Garantia 2 años
PERIFERICOS OPCIONALES

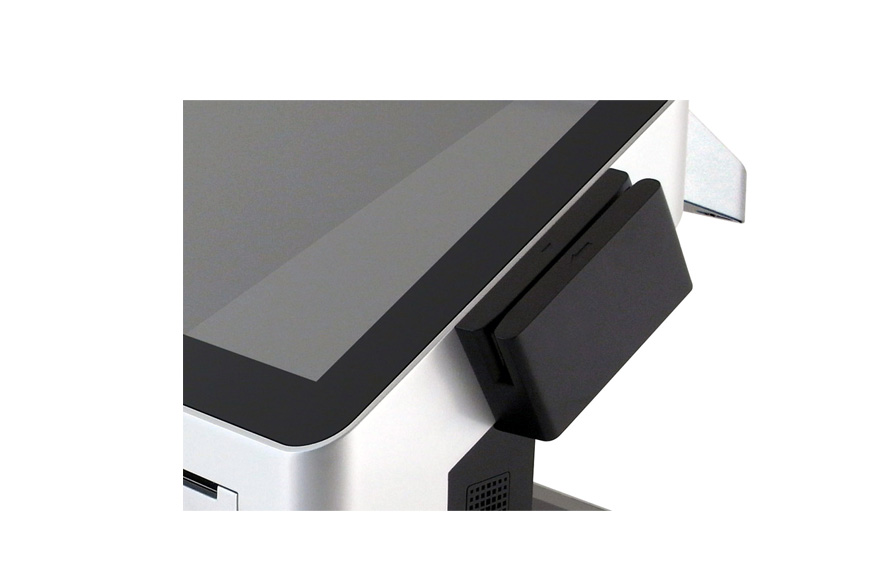

• Lector de Tarjetas de Banda Magnética
• Visor de Cliente
• Segunda Pantalla de 7"

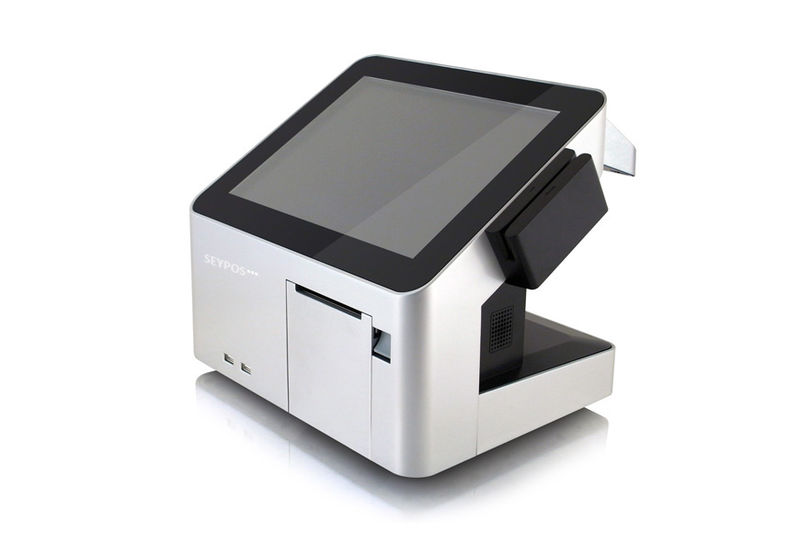

| MODEL | SEYPOS 562 A.I.O |
| Placa Base | C56 Placa Industrial |
| Procesador | Intel® Cedarview D2550 Dual Core 1.86Ghz |
| Chipset | Intel® Integrated Graphics + NM10, 2W |
| Memoria RAM | 1x DDR3 SO-DIMM hasta 4GB |
| Procesador Gráfico | Integrado (Graphics Base Frequency 640 MHz) |
| Touch Panel |
| Pantalla | 12.1″ LED (Backlight) |
| Tecnolpgía Táctil | Resistiva |
| Brillo | 500 cd/m2 |
| Resolución | 1024 X 768 |
| Almacenamiento |
| Disco Sólido | 32GB SSD |
| Puertos de sistema |
| USB | 6 x (2 Frontales + 4 Posteriores) |
| Serial | 4 x RJ-45 COM (Powered COM3/COM4 +5V/+12V configured by jumper) |
| LAN | 1 x RJ-45 (10/100/1000 Mbps GigaLAN) |
| Second Display | 1 x Conector Hembra |
| DC19V | 1 |
| Cajon Portamonedas | 1 x RJ-11(12V/24V) |
| Power Button | 1 |
| Audio |
| Altavoces Intemos | 2 x 3W |
| Power |
| Power Supply | Adaptador (DC 90W, 19V, 4.7A) |
| lmpresora Integrada>>> | Seiko Impresora térmica con auto rutter,170mm / sec (COM6*/USB) |
| Comunicacion |
| Wireless LAN | No |
| Modulos Opcionales | MSR 3 Pistas | VFD | Second Display 7″ |
| | (PS2/COM6*) | 2 x 20 (USB) | 7″ LCD (USB) |
| Certificados |
| EMC & Safety | FCC Class A / CE Mark / LVD / CB |
| Environment |
| Operate Temperature | 0ºC a 35ºC |
| Storage Temperature | -20°C a 60°C |
| Dimensiones (WxDxH) | 321.9 x 250 x 283.8 mm |
| Peso | 7.4kg |
| Sistemas Operativos Soportados | Windows® XP Profesional, Windows® Embedded POSReady 2009, Windows® XP Embedded, Windows® XP Profesinal for Embedded, Windows® 7, Windows® 8.1, Linux. |
| Garantía | 2 años |
